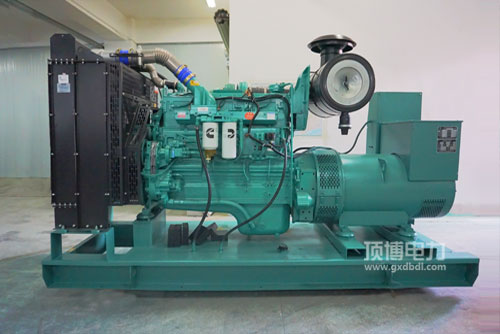

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用发起机汽柴油城市发展性好: 最新的汽柴油控住操作系统，独立拥有的STC、ESTC 分等级控住操作系统，特有方案的气缸边侧燃燒室，直流高压喷射出汽柴油，彻底的吸雾，燃燒彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电量用汽车发心理瞬态功效优质: 美好的汽车发心理一体化设计的，做好康明斯现代感的EFC系統，保持要求高，回应时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用起思想升最大功率高: 产品 定制紧促.外观设计合理安排，正常运行有序。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号规格 QSNT. QSK19. QSK38. QSK50符合中国大非路线第一价段及南美Tier2. Tier 3直接排放条例的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件必须性好， 打火机运营及维保护肤便捷性，生产成本可控。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力区域 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯电站用运行因的优点：表面积小， 解压缩变高， 喷淋喷嘴的空气热处理加热，非常易运行，转移车机开关电源的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机主要参数	惯用工作效率(kW)Prime Power	备品工作电压kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
